图像处理与分析 实验一

共计 1132 个字符，预计需要花费 3 分钟才能阅读完成。

实验内容：打开图像，显示图像，灰度化，二值化，存储图像，缩放图像，观察其分辨率，降低灰度分辨率两种模式，观察图像变化

打开图像

import cv2 as cv

img = cv.imread('LenaRGB.bmp')
img = cv.cvtColor(img, cv.COLOR_BGR2RGB)

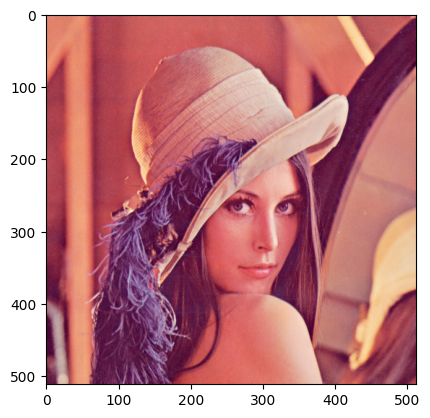

显示图像

import matplotlib.pyplot as plt

plt.imshow(img)

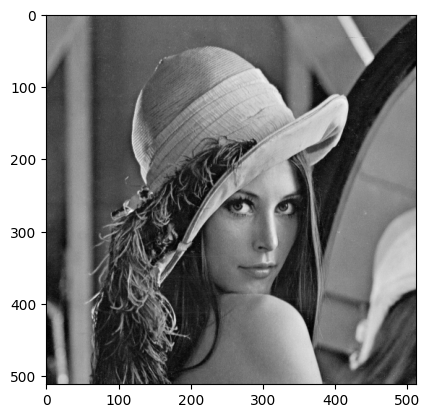

灰度化

gray_img = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
# show_all(img, gray_img)
plt.imshow(gray_img, cmap='gray')

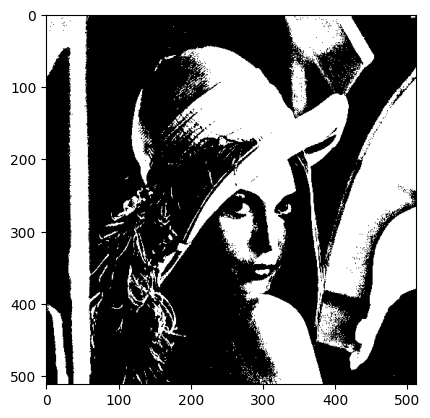

二值化

_, binary_img = cv.threshold(gray_img, 127, 255, cv.THRESH_BINARY)
plt.imshow(binary_img, cmap='gray')

存储图像

cv.imwrite('Lena_binary.png', binary_img)

True

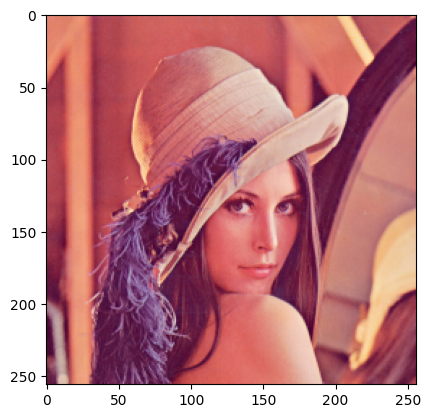

缩放图像 观察分辨率

plt.imshow(img)
img.shape

(512, 512, 3)

row, col, _ = img.shape
resize_img = cv.resize(img, (int(row / 2), int(col / 2)))
plt.imshow(resize_img)
resize_img.shape

(256, 256, 3)

降低灰度分辨率

def reduce_intensity_levels(img, level):
    img = cv.copyTo(img, None)
    for x in range(img.shape[0]):
        for y in range(img.shape[1]):
            si = int(img[x, y])
            ni = int(level * si / 255 + 0.5) * (255 / level)
            img[x, y] = ni
    return img

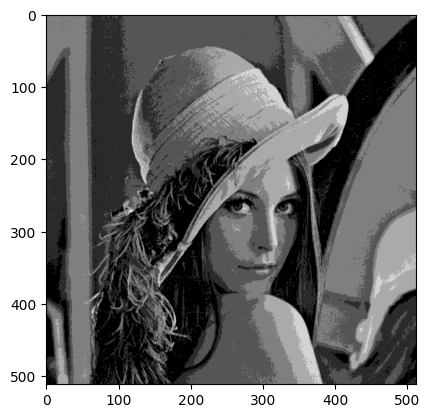

8 级

gray_img_level8 = reduce_intensity_levels(gray_img, 7)
plt.imshow(gray_img_level8, cmap='gray')

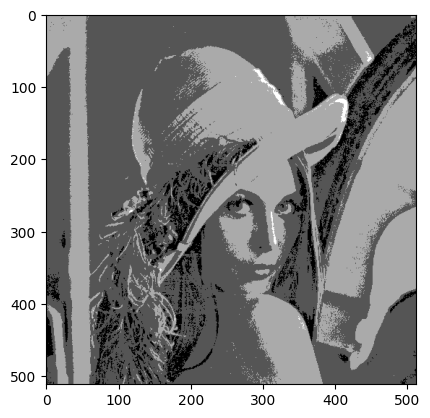

4 级

gray_img_level4 = reduce_intensity_levels(gray_img, 3)
plt.imshow(gray_img_level4, cmap='gray')

2 级

gray_img_level2 = reduce_intensity_levels(gray_img, 1)
plt.imshow(gray_img_level2, cmap='gray')
